PM1000LH

The CTM PM1000 is a high-performance sealless centrifugal magnetic drive pump designed for marine air conditioning systems. Featuring an Open Drip Proof (ODP) Motor Enclosure, it delivers a maximum flow of 17.2 gallons per minute (1,000 gallons per hour) with a maximum head of 27 feet at 11.7 PSI.

Powerful & Efficient: Provides reliable water flow to support marine A/C systems.
Sealless Magnetic Drive: Leak-free operation with minimal maintenance.
Marine-Grade Safety: ISO 8846 Marine Ignition Protected for secure onboard use.

PM1000LH
230
Volts
Liquid Cooled
Air Cooled
Easy Maintenance
Heavy Duty
All Bronze Construction
High Performing Seals
Magnetic Impeller
ODP Motor
TEFC Motor
Spec Sheet
Download
Specifications
Weight (Lbs)
10
Max Flow (GPH/LPM)
17.2 / 54.8
Max Head (Ft)
27
Max Internal Pressure (PSI)
50
Max Liquid Temperature
180º
Inlet (in)
1 FPT
Outlet (in)
1/2 MPT
Hertz (Hz)
50/60
Voltage (V)
230
Phase
1
Watts
216
Amps (A)
1.6
HP
1/8
RPM
3450
RPM
Metal
Motor Chart
Pump Head
Impeller
GPH
1000

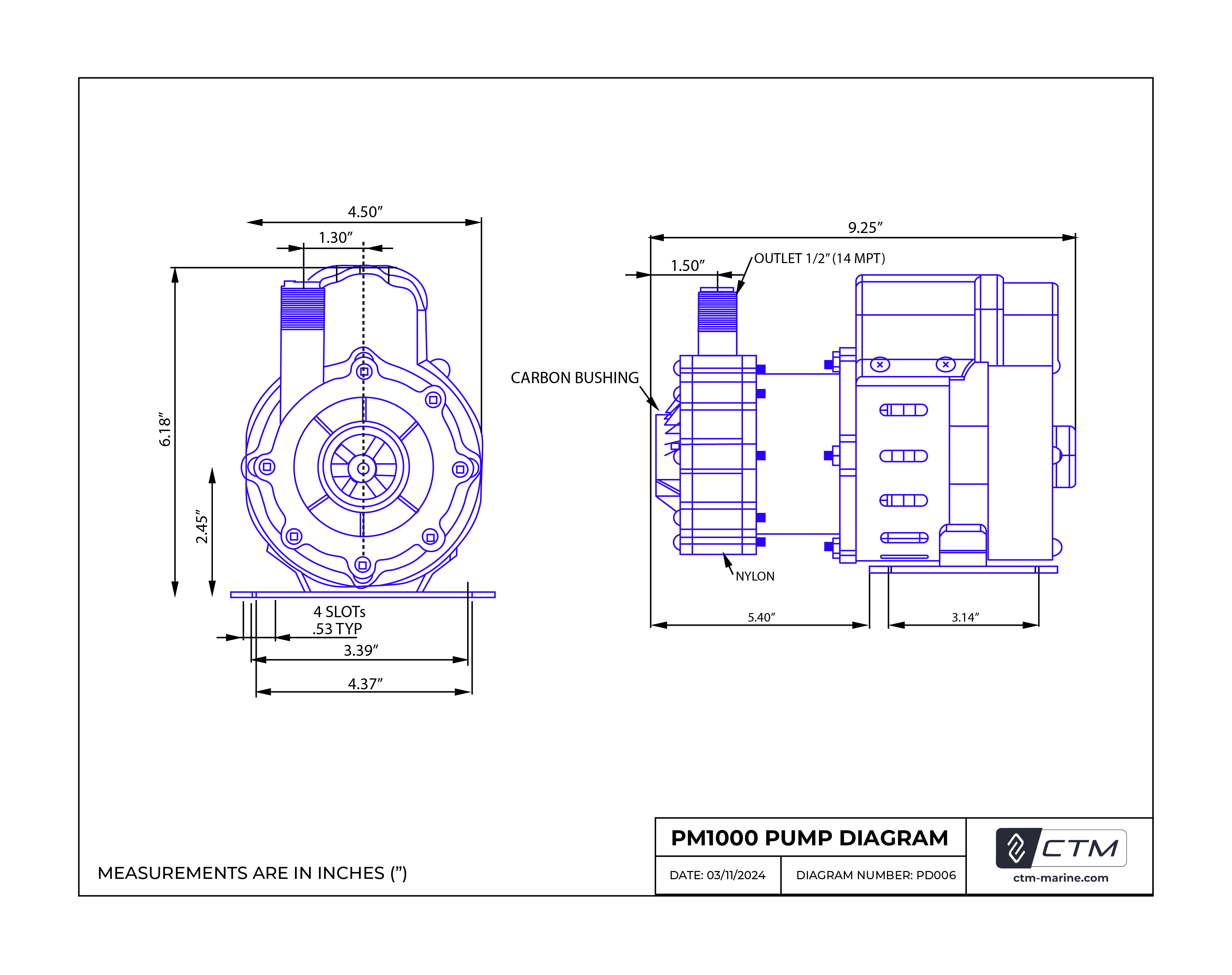

Diagram

Explore the detailed specifications and dimensions of CTM Marine water pumps
